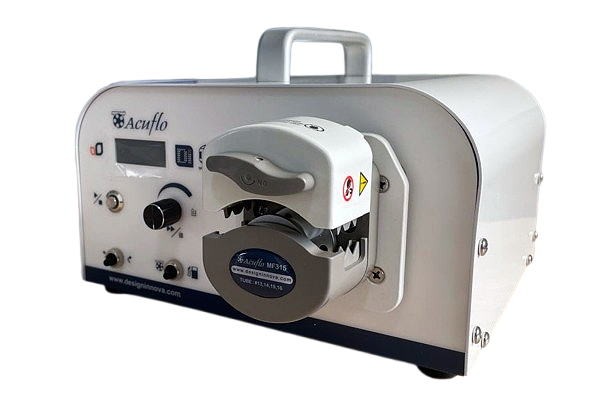

Acuflo D315DS is dual channel high performance, fully programmable, variable speed, precision metering peristaltic pump with Hybrid high torque Direct drive motor which delivers consistent, precise & repeatable flow rates with an accuracy of 0.1 RPM, the suitable pump head are LF-series, Mf315, Mf317 and LF2. The pump provides flow rates from 0.005 to 185 ml/min. The front control panel has start/stop, RPM control, direction control & with Filling function option.
Application :
- Chromatography applications
- Purification of all kinds of proteins
- Industrial /process
- Precise dosing in biotech & pharmaceutical
- Dispensing and filling fluids
- Liquid Filling
- Other fluids transfer
Specifications
RPM: 0.1 to 300.0 RPM
RPM Precision: 0. 1 RPM
Drive : Hybrid high torque Direct drive motor
Flow rate : 0.005-185 ml/min/channel
Set point & Control: Front Panel Knob Encoder
Start/Stop, CW/CCW control & filling
Display : 4 Digit LED with function symbols,
Option of RPM / Flow Rates Display
Functions : Programmable flow Rates
Dispensing and Filling function
programmable Anti Drip option
Programmable back suction angle
Remote and local control
Option for Start / Stop foot pedal Switch
Digital interface: RS485 / 15 pin DIN External Control Port
Power Fail Recovery : Auto Restart & Auto Resume

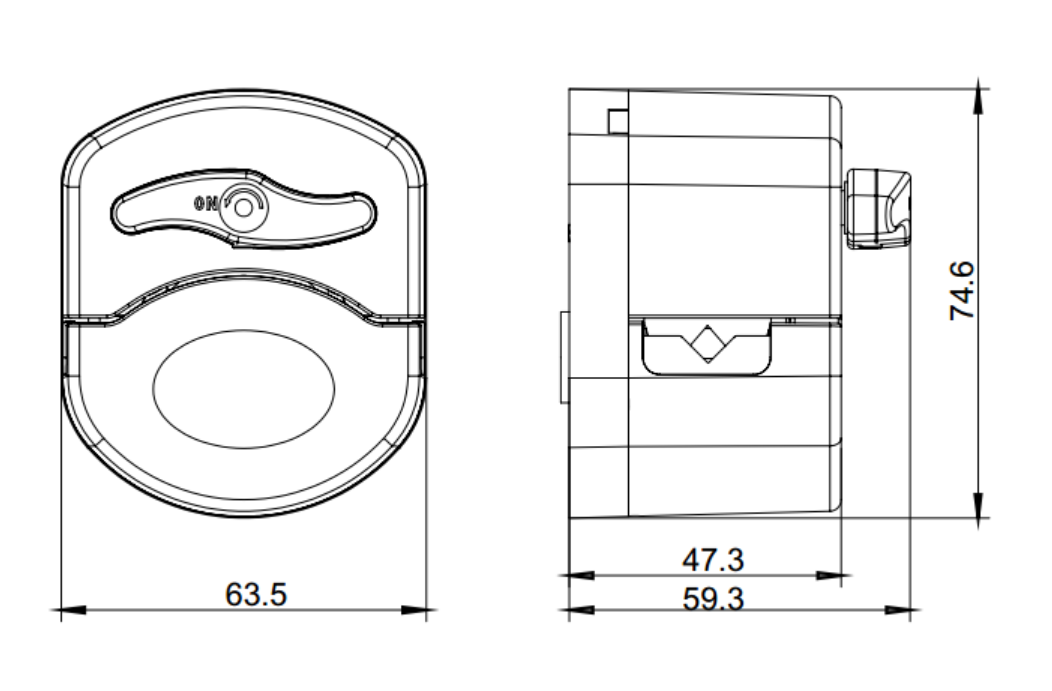

Applicable Heads: LF Series, Mf317 & MF315
Max Tube pressure: 33psi
Power supply: AC 95- 256 AC 50/60 Hz
Power consumption: < 60 W
Operating condition: Temperature 0 to 55° C
Relative humidity < 80%
Drive weight: 4.5 kg
IP rating: IP 31
Dimensions (L x W × H): 242 mm × 280 mm× 165 mm
