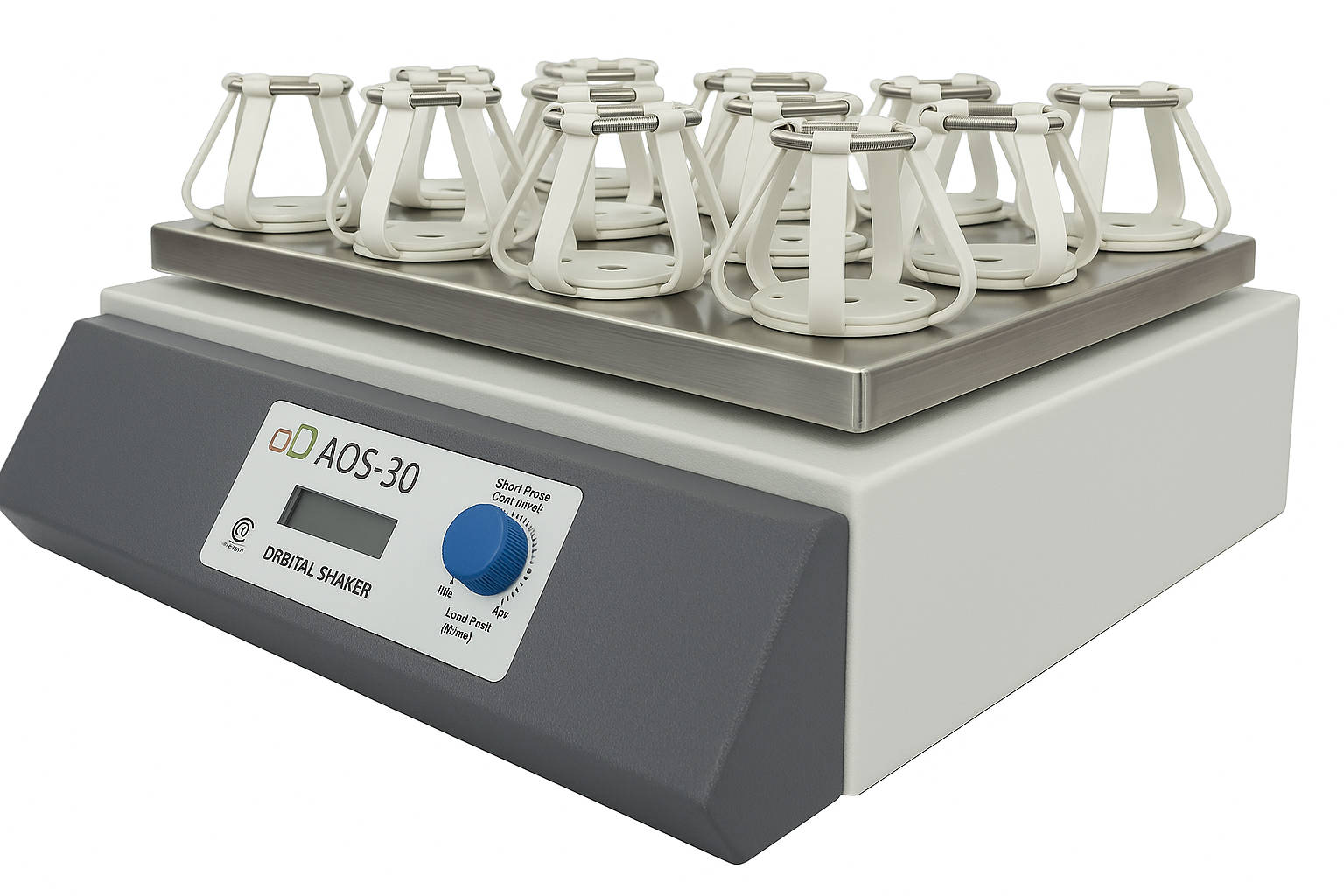

Digital Orbital Shaker – Model AOS-30
For Advanced Algal Cultivation & Photosynthetic Research
Overview
The AOS-30 is a high-precision digital orbital shaker tailored for microalgae and cyanobacteria cultivation, photosynthetic studies, and biomass optimization. With orbital motion, optional bottom-mounted full-spectrum QD-LED illumination, and programmable photoperiod control, it provides ideal conditions for lab-scale algal R&D.
• Key Features
- Orbital shaking (20 mm orbit) ensures uniform mixing and gas exchange
- Speed adjustable from 1–300 RPM (optionally up to 600 RPM)
- Direct Drive Hybrid Brushless motor: silent, maintenance-free
- Stainless steel tray with 16 clamps for 250 mL / 500 mL conical flasks
- Optional QD-based LED array for bottom illumination (sunlight spectrum)
- Programmable light intensity: 0–100%, up to 2000 µmol/m²/s
- Photoperiod control: customizable day/night light cycles
- CO₂ sparging port for enhanced productivity(Optional)
- Microprocessor-controlled with real-time speed/timer LCD
- End-of-cycle audio alert
Applications
- Microalgae & cyanobacteria growth
- Photo bioreactor R&D and upscaling
- CO₂ fixation and photosynthesis studies
- Photoperiodic gene expression research
- Algal biomass & pigment production
- Biofuel, nutraceutical, and climate simulation labs
Technical Specifications
| Parameter | Details |
| Shaking Motion | Orbital |
| Orbit Diameter | 20 mm |
| Speed Range | 1–300 RPM (optional: up to 600 RPM) |
| Timer | Digital, up to 99h 59min |
| Operation Modes | Continuous / Timer / Programmable Photoperiod |
| Display | 16×2 LCD |
| Max Load | 10 kg |
| Platform Size | 420 × 420 mm |
| Flask Capacity | 16 clamps for 250 mL / 500 mL flasks |
| Dimensions (L×W×H) | 600 × 500 × 160 mm (without flasks) |
| Power Supply | 220V AC, 50 Hz |
| Power Consumption | Shaker: 100 W / Illumination: 300 W (optional) |
| Provision for Optional Add-Ons | |
| CO₂ Sparging | Eight Ports with regulators |
| Bottom Illumination (Optional) | Full-spectrum QD LED, programmable |
| Light Intensity (Optional) | 0–100%, up to 2000 µmol/m²/s |
| Photoperiod Programming | Yes – full cycle control |
