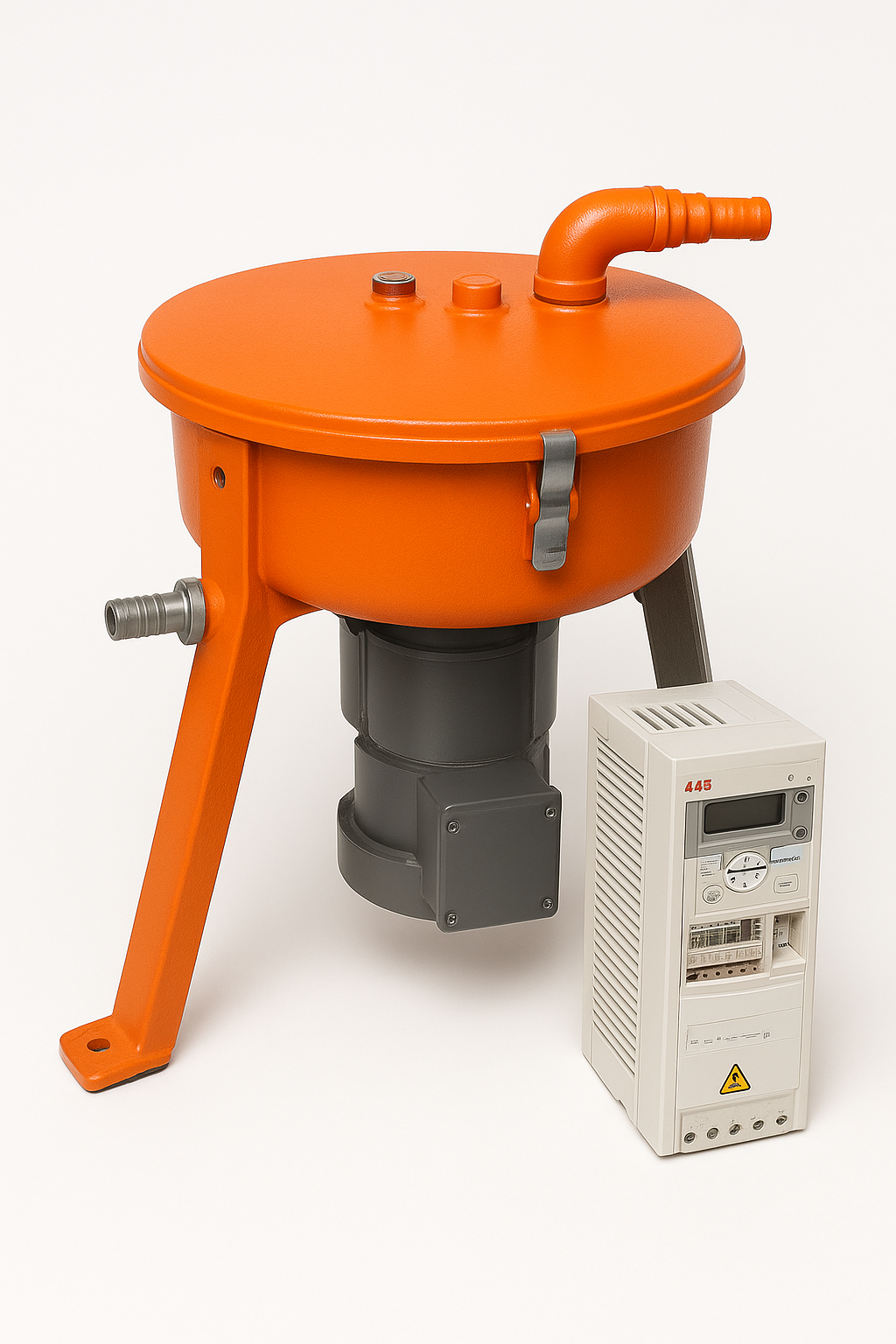

AlgaSpin 675 – Continuous Flow Algae Centrifuge
“Clean Water, Pure Biomass, Zero Hassle”
The AlgaSpin-675 Filtering Centrifuge is a simple, reliable, and cost-effective solution for labs, universities, and research institutions working with algal slurries, bacteria suspensions, and bio-liquid filtrations. Designed for continuous, gravity-fed operation, it eliminates the need for pumps, high-pressure fittings, or consumable filters. Delivering up to 3,620 g at 6000 RPM, the AlgaSpin-675 removes particles down to 1 micron from algae, bacteria, juices, and other suspensions, making it an ideal choice for bio resource labs and algae harvesting applications.
Key Features
- Gravity Fed – No pumps, no pressure, no expensive fittings
- Single Pass Filtration – Run the slurry once for separation
- No Consumables – No messy filters to replace or maintain
- Quiet Operation – Custom motor < 32 dB noise
- Reliable Drive – Direct drive with variable rotor speed
- High Capacity – Rotor holds over 675 mL ≈ 22.8 fl oz.
- High Temperature Resistant – Operates up to 85°C liquids
- Compact & Durable – Lab-friendly size, robust build
How AlgaSpin-675 Works

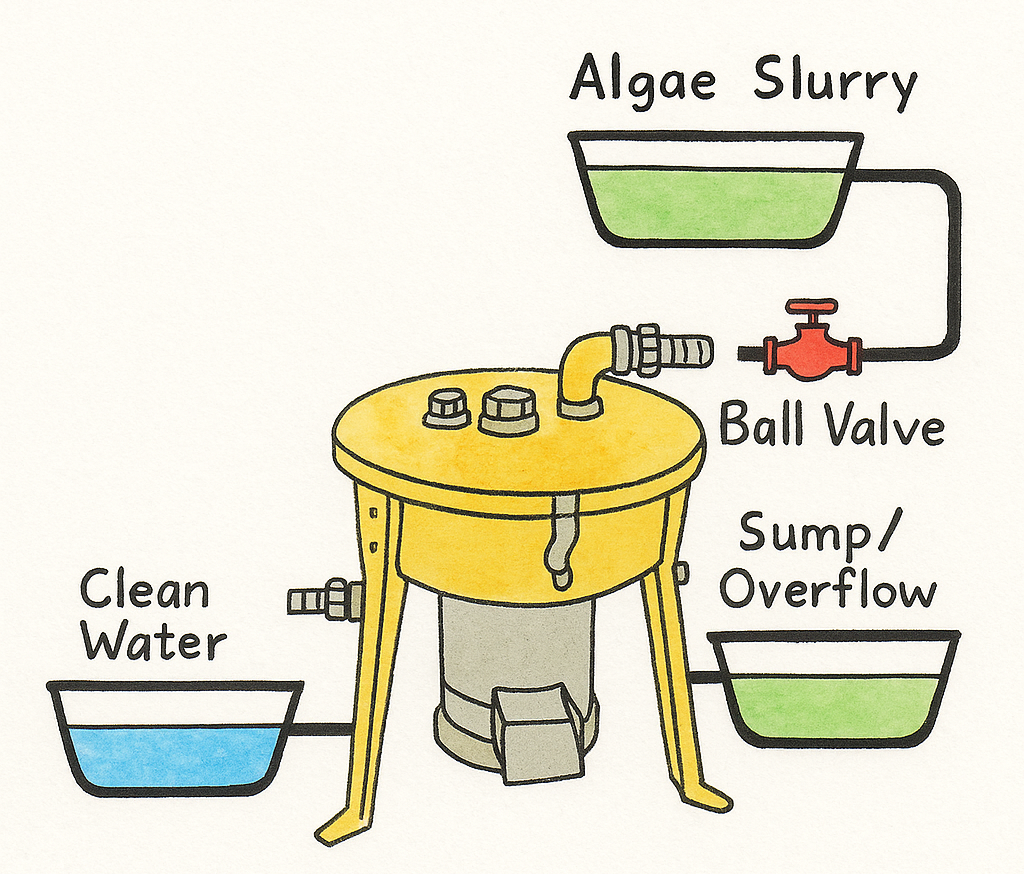

The centrifuge applies High g-force (3,620 g) to the liquid in the rotor bowl revolving at 6000 RPM, creating a forced settling effect. Denser particles and solids are trapped inside the bowl, while clean liquid sprays outward, collecting on the housing walls and draining through the outlet. The system uses a ball valve to regulate slurry input and directs separated water and biomass into separate collection containers.
Applications
- Algae and microalgae harvesting
- Bacteria separation from culture media
- Plant & fruit juice clarification
- Biomass recovery for biofuels and bio products
- Research in biotechnology and environmental labs
Specifications
- Motor & Drive: 6000 RPM, 250W-300 W
- Motor as per Indian Standard IS 12615:2018 (BIS), aligned with IEC 60034-1, and IEC 60034-30, which classifies IE4 as “Super Premium Efficiency.”
- Max G forces 3,620 g,
- Noise Level: < 40 dB (at 6000 rpm)
- Bowl Capacity 675 mL (23 oz.), 8″ Diameter × 2″ Depth
- Flexible flow rate (0–25 GPH adjustable) or (0–95 LPH)
- Power: 230 V AC 50hz, 50–100 Hz, VFD Programmable Drive
- Physical: Weight 23 kg, Dimensions 330 × 330 × 470 mm
Advantages
- Continuous single-pass filtration
- No consumable filters – cost savings
- Gravity feed = no moving pumps, no wear and tear
- Quiet & low-maintenance design
- Flexible flow rate (0–25 GPH adjustable) or (0–95 LPH)
- Filters down to 1 micron
