PhotoBiosim PBR-T-70L-SUNPLUS ( Custom Design)
- Specifications
- Dimensions (L × W × H) : 2.25 m × 0.60 m × 1.20 m
- Total Culture Volume : 65 L
- Solar Collector Tube Diameter : 60 mm
- Tube Material : (PMMA) – transparent, non-sticky, Long life
- Power Supply Voltage : 230 VAC (AC 220 V compatible)
- Power Consumption : 550 W

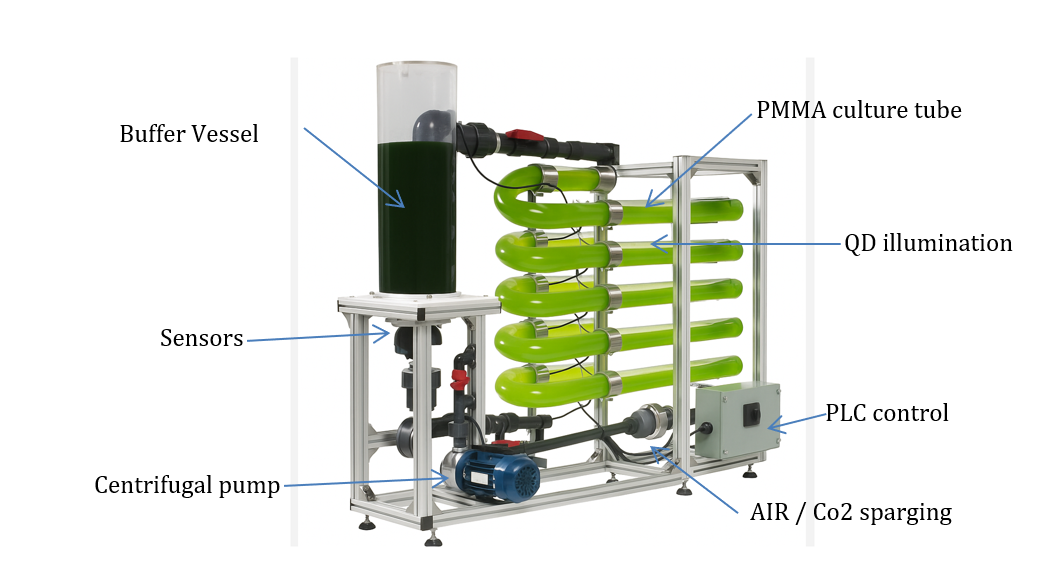

Structure Component
- PMMA Tubes : Ø 60
- mm × 1 m, ~2.3 L capacity per tube
- Tube Arrangement : 2 tubes
- per layer, 10 layers total, ~50 L inside tubes
- Support System :Aluminium
- alloy bracket with pipe clamp fixation
- Buffer Column :50 L
- capacity, organic glass barrel
- Functions :Gas
- exchange, harvesting, nutrient replenishment
System Details
- CO₂ Flow Control Analog flowmeter with control valve
- Degassing Piston compressor with bubble sparger
- Air Supply Filtration & supply system (backup in absence of CO₂)
- Circulation Centrifugal pump for continuous culture recirculation
- Cleaning Pump Circulating water pump for tubular cleaning & algae solution flow
- Buffer Device Ensures stable gas exchange and culture environment
- pH Sensor with Modbus interface
- Temperature Sensor with Modbus interface
- Ambient Temperature Analog temperature sensor
- Illumination Dimmable QD LED strips, 300–500 µmol(photon)/m²·s, intensity control system
- PLC Industrial-grade, expandable I/O
- User Interface GUI accessible via PC
- API Support OPC-UA framework for logging & backend control
- Touchscreen Integrated with PLC for real-time monitoring
Operational Features
- Cooling Module (Optional) Extends culture temperature range: 15–60 °C (ambient ≤30 °C)
- Cleaning Easy – supports mechanical & chemical methods
- Aseptic Operation Designed for sterile handling
Applications
- Algal biomass production
- Biotechnology & biofuel research
- Photosynthesis & metabolic studies
- Continuous culture experiments
